The STNK series of safety interlock and safety door switches is a line of specially designed safety switches for machine door and guard applications.
Other application are Car Top Hatch Switch, Compensation rope Monitoring, CEDES Tape break monitoring, Collapsible Guardrail and monitoring of any type of machine guard/ door/ Flap
The STNK Series are safety switches for machine and equipment applications that require a robust safety limit switch with a right angle key (STNK01), with a flat key (STNK02) and with an adjustable right angle key (STNK03).

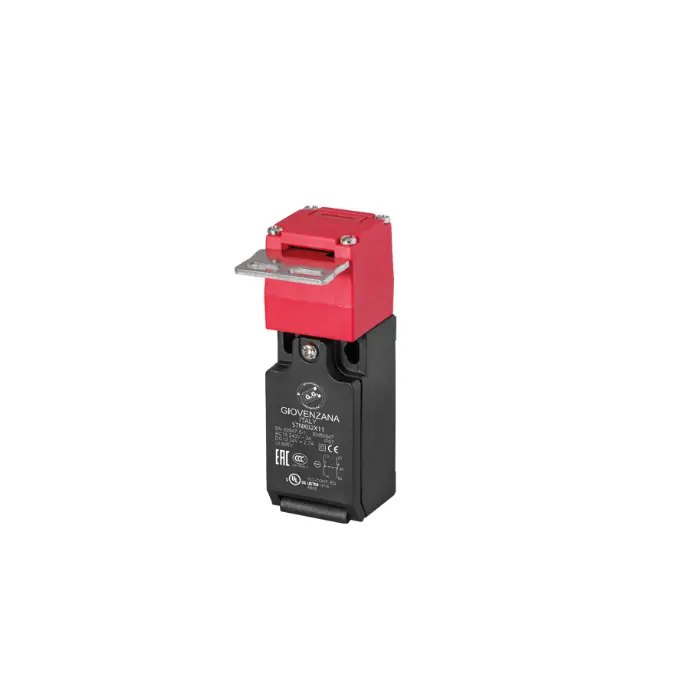

STNK02
STNK02X11
STNK02W02
STNK02Z11
STNK02W12
STNK02W03
Thermoplastic body
Protection degree IP65
With flat key
Contact types – slow action and snap action type “Zb”: X11 (1NC/1NO Slow Action) – W02 (2NC Slow Action) – Z11 (1NC/1NO Snap Action) – W12 (2NC/1NO Slow Action) – W03 (3NC Slow Action)
Conduit entry: Standard M16 – On request M20, 1/2NPT, PG11, PG13.5, with connector

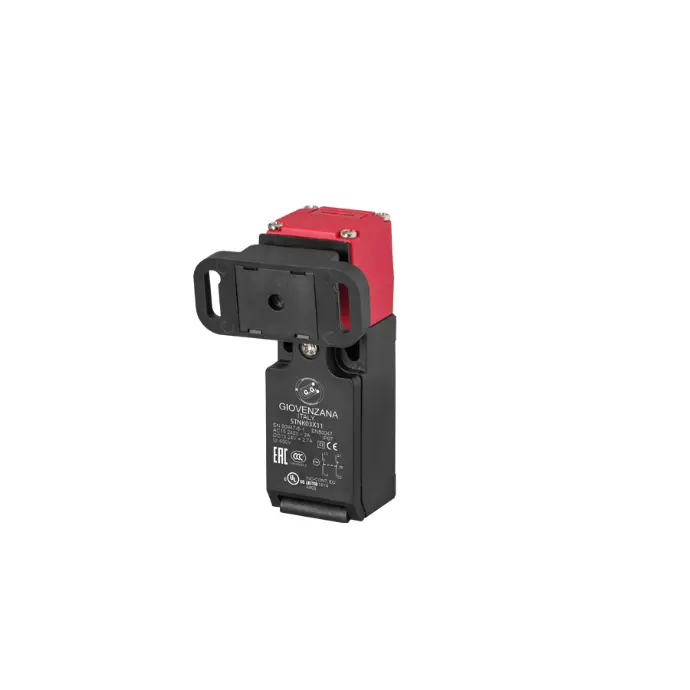

STNK03
STNK03X11
STNK03W02
STNK03Z11
STNK03W12
STNK03W03
Thermoplastic body
Protection degree IP65
With adjustable key
Contact types – slow action and snap action type “Zb”: X11 (1NC/1NO Slow Action) – W02 (2NC Slow Action) – Z11 (1NC/1NO Snap Action) – W12 (2NC/1NO Slow Action) – W03 (3NC Slow Action)
Conduit entry: Standard M16 – On request M20, 1/2NPT, PG11, PG13.5, with connector

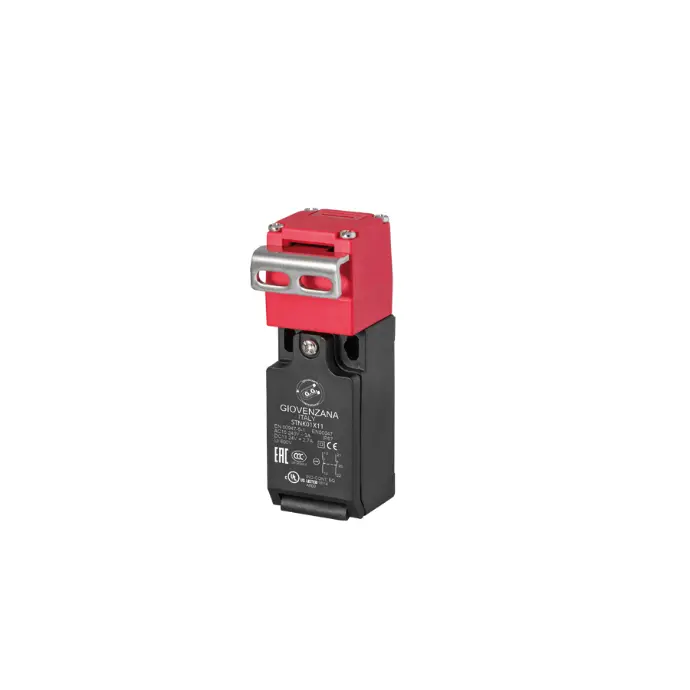

STNK01
STNK01X11
STNK01W02
STNK01Z11
STNK01W12
STNK01W03
Thermoplastic body
Protection degree IP65
With right angle key
Contact types – slow action and snap action type “Zb”: X11 (1NC/1NO Slow Action) – W02 (2NC Slow Action) – Z11 (1NC/1NO Snap Action) – W12 (2NC/1NO Slow Action) – W03 (3NC Slow Action)
Conduit entry: Standard M16 – On request M20, 1/2NPT, PG11, PG13.5, with connector
