P02.1, P02.D2, P02.RM Pendant Stations - Product Page
Compact & Essential

P02 SERIES PENDANTS

The essential 2-button ergonomic grip control solution, focusing on direct control and rated performance for small hoists.

P02 Series Pendant Stations Cover Image

The P02 Series is a single-row pendant control station with two holes designed specifically for small hoists and lifts requiring simple Up/Down or Forward/Reverse control. Its ergonomic grip ensures comfortable and safe operation.

Technical Features

Configuration
Features two holes in a single-row layout for primary directional control.
Contact Capacity & Speeds
One control accepts up to 3 contact blocks. Available in single speed and 2 speed contact block versions.
Enclosure Rating
IP65 rated (Dust-tight and protected against water jets).
Durability
Double insulation, shock proof, and heat resistant construction.
Component Standard
Designed to accept standard 22mm diameter control components.
Certification
cULus-rated models available with the prefix (minimum order).

Model Code Breakdown


Part of CodeMeaning
P02.1The standard 2-button version (Standard configuration/color).
P02.D2The variant featuring specialized dual selector switches or specific design features.
P02.RMThe variant possibly indicating a Remote Mounting or specific Weather Resistant configuration.
CYThe cULus listing prefix for certified models (subject to minimum order quantity).

Explore Available Units

P02.1 Standard
P02.1

Standard 2-button pendant station.

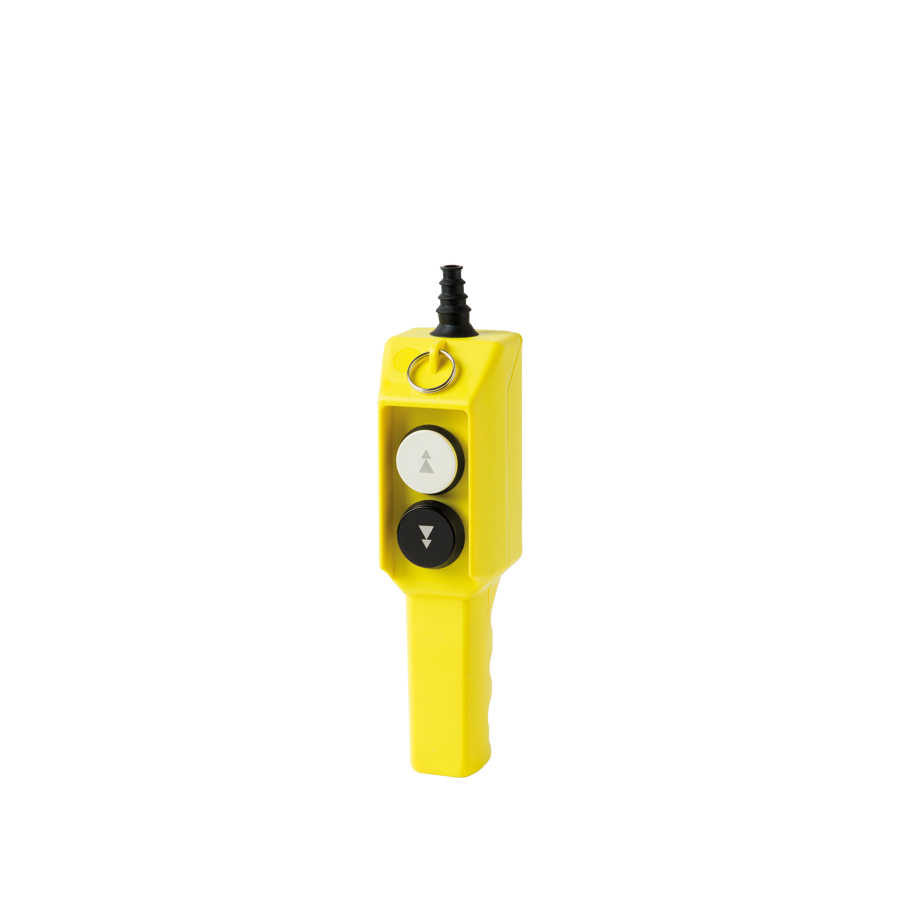

P02.D2 Dual Selector
P02.D2

Variant featuring specialized dual selector switches.

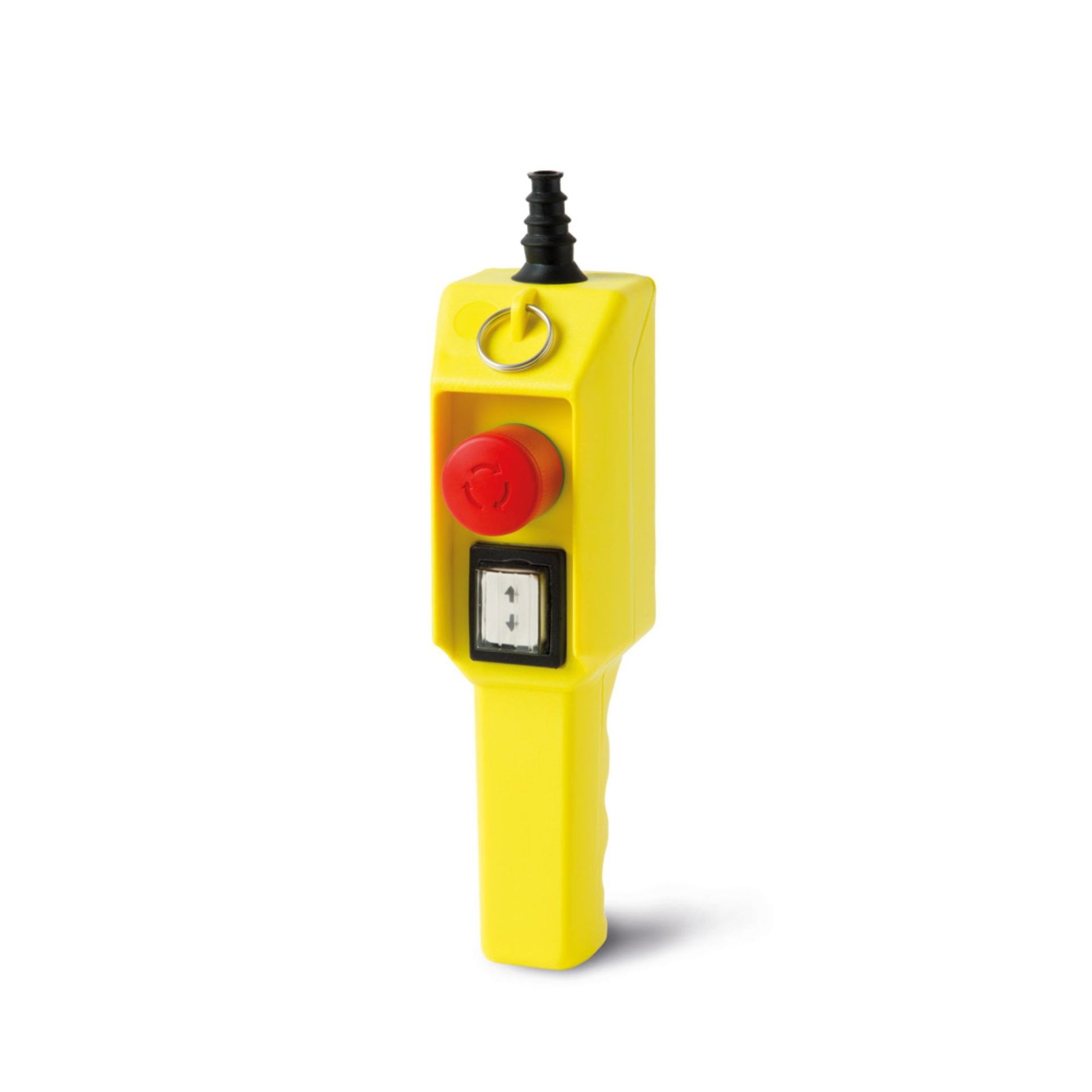

P02.RM Remote
P02.RM

Remote Mounting or Weather Resistant variant.

Custom Solutions Delivered Fast

Define your specific control sequence and receive your fully assembled custom station in just 3 business days.
