HP Series Ergonomic Pendant Stations - Product Page
High Performance Control

HP SERIES PENDANTS

The High Performance (HP) Series offers superior ergonomic control, available in configurations from 3 to 8 buttons for cranes and advanced lifting systems.

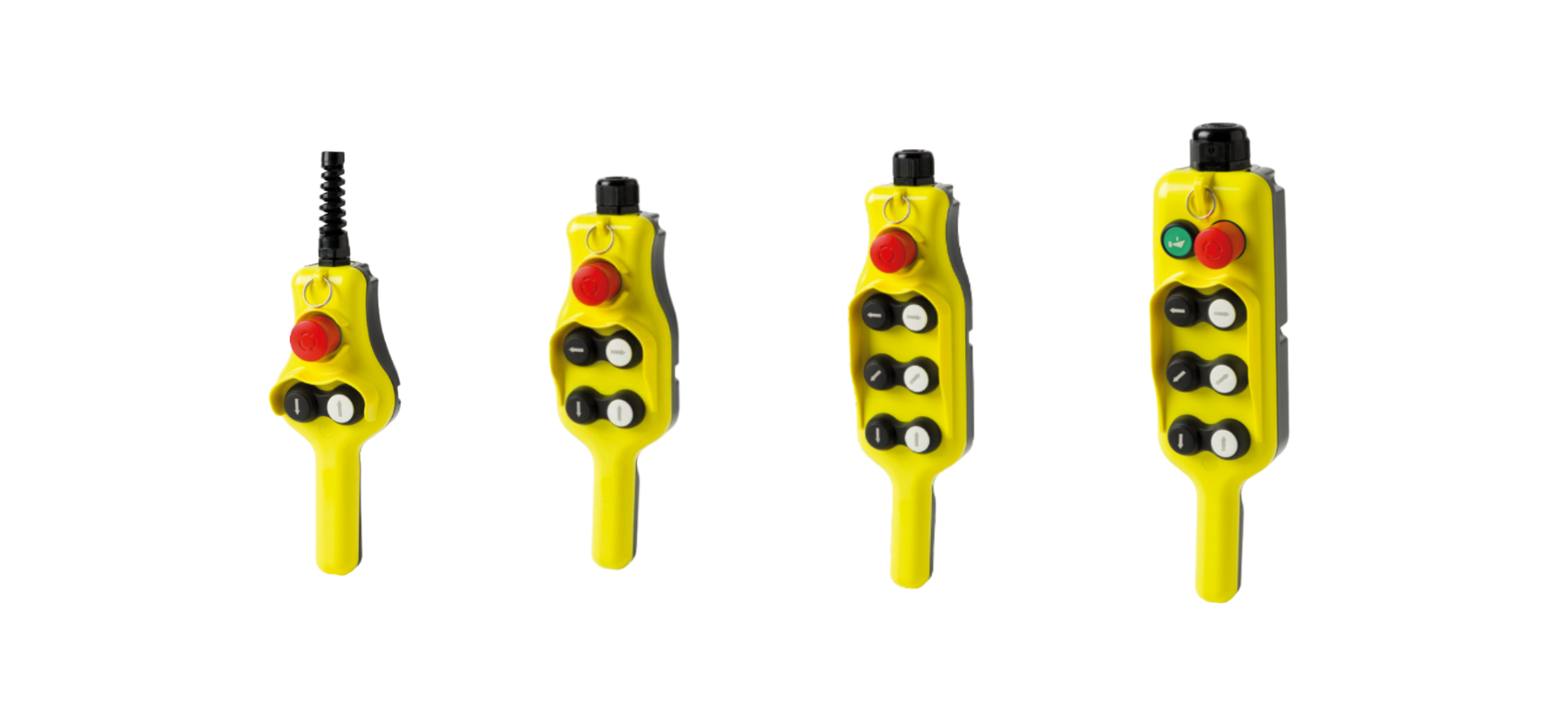

HP Series Pendant Stations Cover Image

The HP Series is an Ergonomic Grip Pendant Control Station designed for comfort during extended operation. We offer standard assembled units with 3, 5, 7, and 8 buttons, all engineered for precision and safety.

Technical Features

Certification
cULus-rated models available with the prefix (minimum order).
Speed Control
Available in single speed and 2 speed contact block configurations.
Enclosure & Protection
IP65 rated (IEC / EN 60529) for dust and jet-water protection, featuring double insulation.
Durability & Safety
Shock proof and heat resistant thermoplastic construction for challenging industrial environments.
Bi-directionality
Directional buttons are mechanically interlocked to prevent simultaneous conflicting commands.
Contact Block System
One control accepts up to 3 spring load contact blocks for reliable signal integrity.

Model Code Breakdown


Part of CodeMeaning
HPThe High Performance Ergonomic Grip Series.
03, 05, 07, 08The number of holes/positions in the enclosure.
CYThe cULus listing prefix for certified models (subject to minimum order quantity).

Explore Available Units

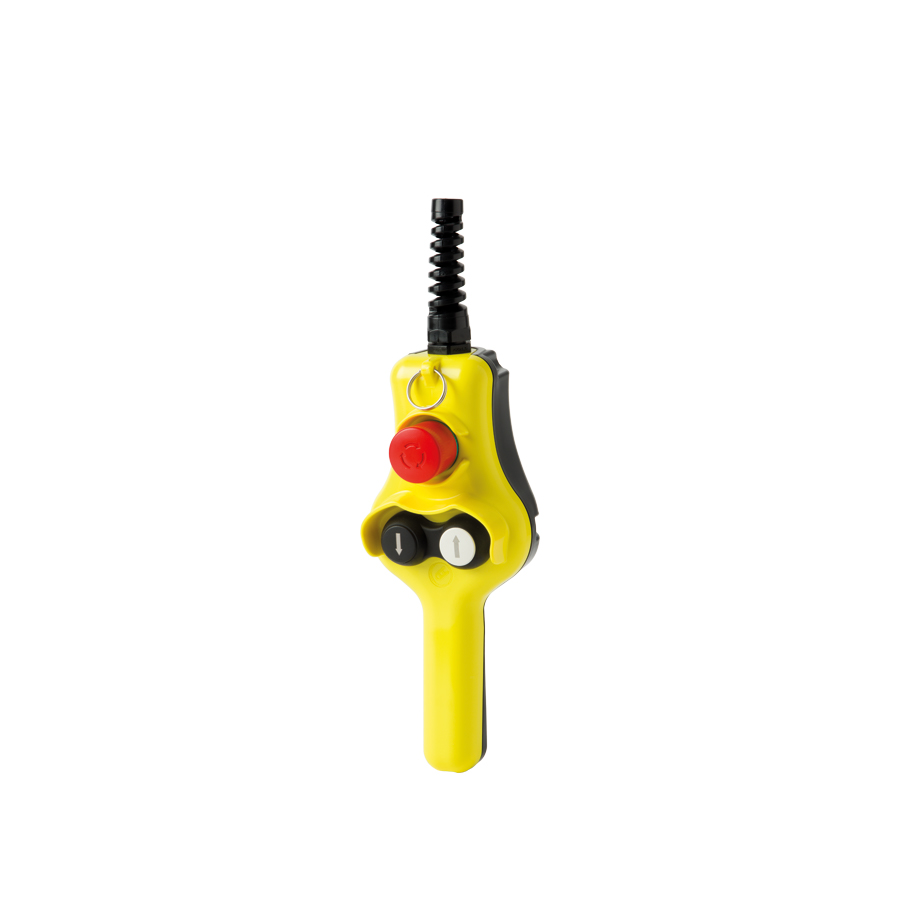

HP03 3-Button
HP03

3-Button ergonomic unit (e.g., Up/Down + E-Stop).

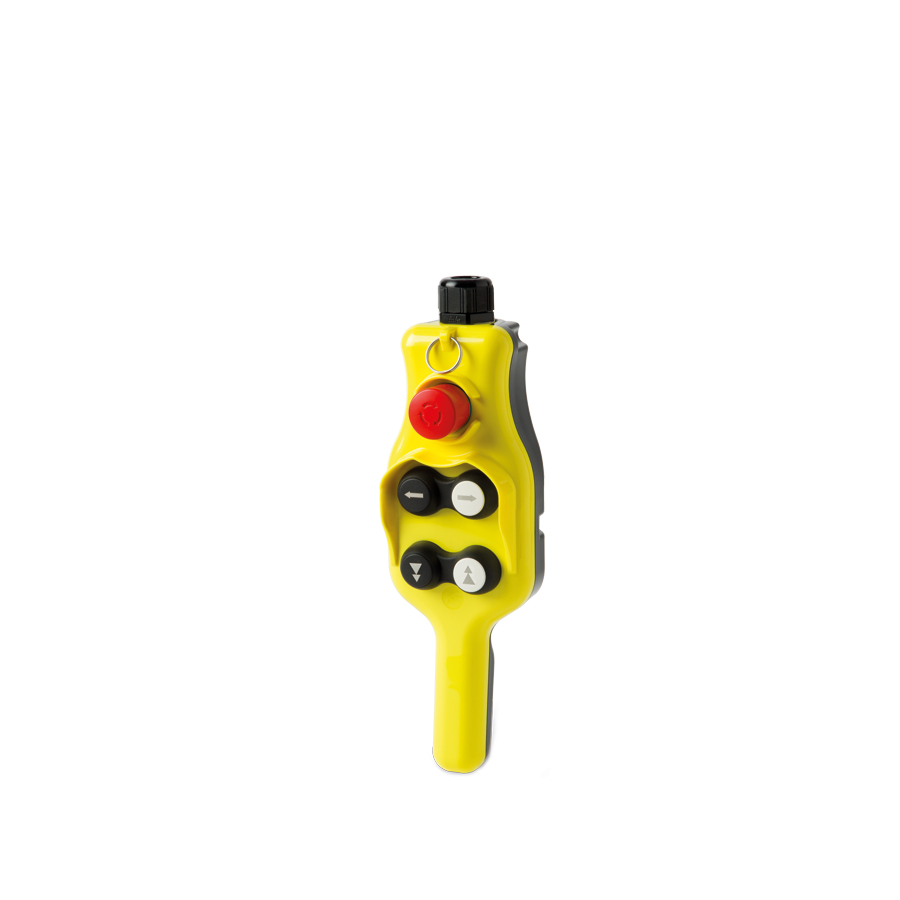

HP05 5-Button
HP05

5-Button unit for 4-direction control plus auxiliary function.

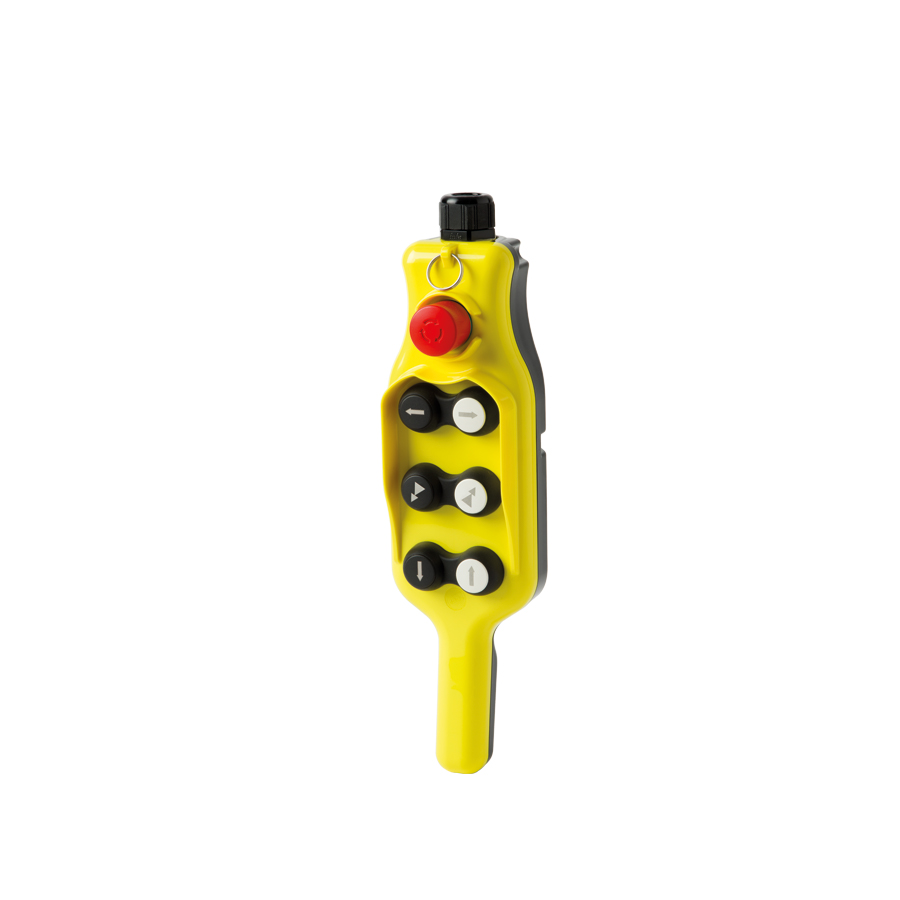

HP07 7-Button
HP07

7-Button station for 6-direction control plus E-Stop or auxiliary.

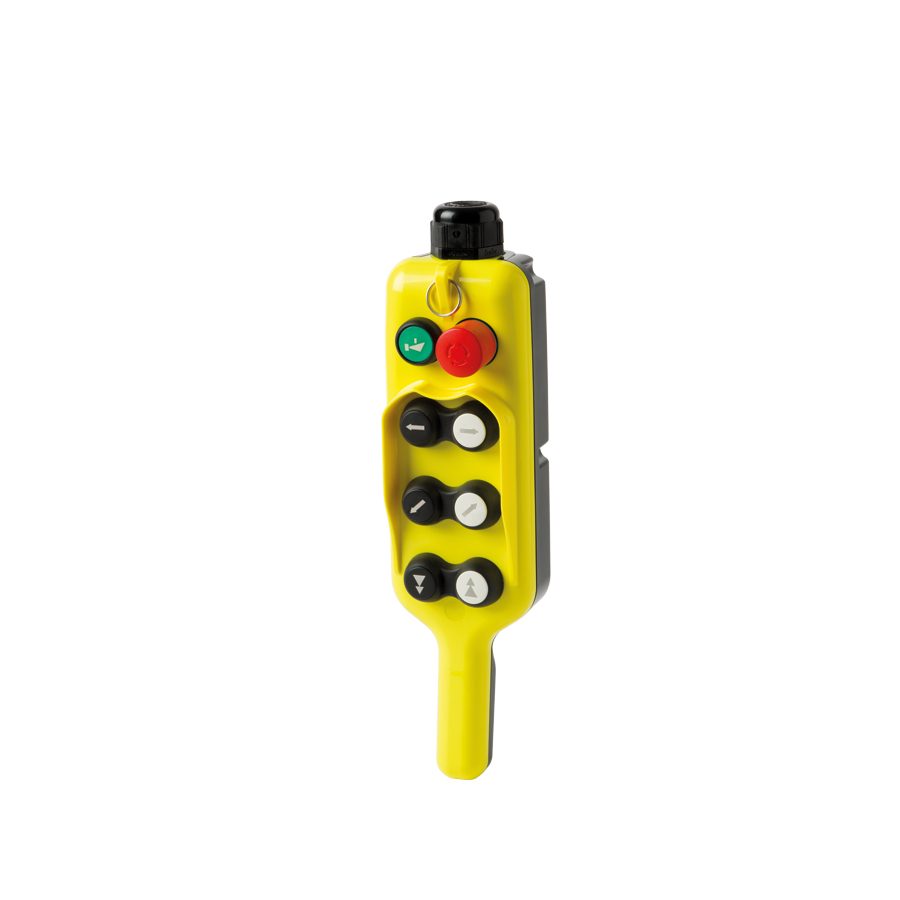

HP08 8-Button
HP08

8-Button station for complex, multi-axis control systems.

Custom Solutions Delivered Fast

Define your specific control sequence and receive your fully assembled custom station in just 3 business days.

Get Custom Quote Download Catalogue
