SPIRATOR - ELEVATOR DOOR CLOSER FOR HATCH DOORS

Eklecmatic proudly distributes the Spirator, a trusted elevator door closer engineered to ensure automatic closure of hoistway doors. Commonly used in commercial and residential elevator systems, this spring-loaded cable puller helps maintain safety compliance and prevents hatch doors from remaining open when the elevator car departs a landing.

Built with durable materials and designed for smooth, quiet operation, the Spirator is easy to install and field-proven for long-term reliability. Whether you're upgrading existing equipment or sourcing hardware for a new project, this unit delivers consistent performance and peace of mind.








Specifications

Hub Material: Delrin

Spool Material: Steel

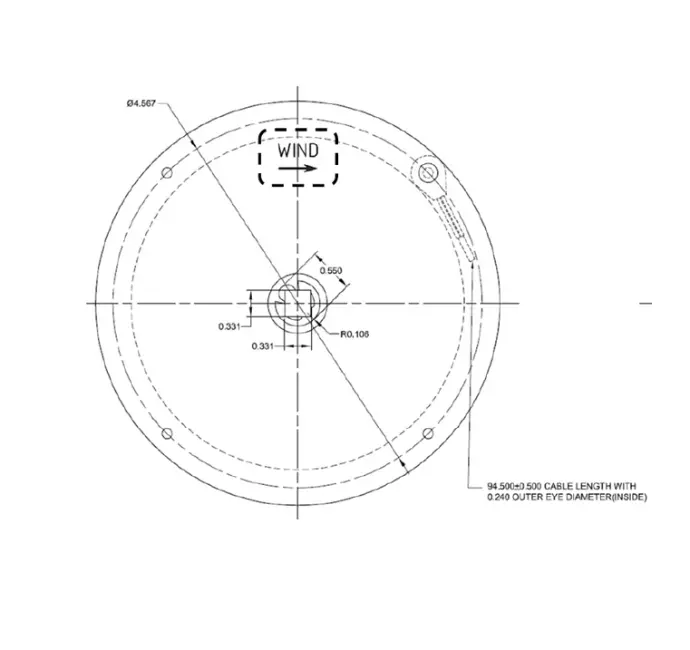

Cable Length: 94.50”

Cable End Type: Eye Terminal

Cable Coating: Clear Vinyl, ø 5/64”

Cable Strand Type: 7x7 Stainless Steel, ø 1/16”

Features

Retracting Force: 6 – 10 lbs at 23 – 52” deflection

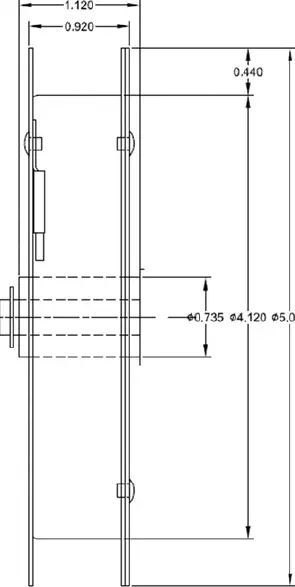

Outside Diameter: 5.00”

Spool Diameter: 4.12”

Spool Width: ≈ 1”

Field proven and easy to install

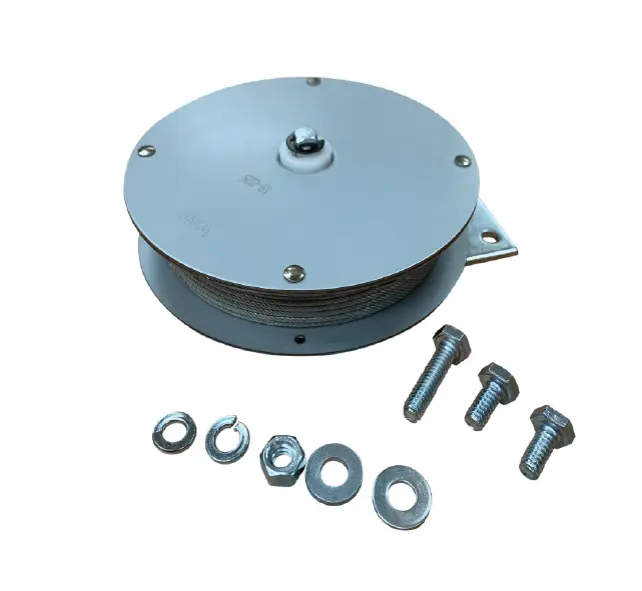

Complete assembly includes Spirator, mounting bracket, and hardware


Need a price?

Ask For Quote


Check the Specifications Sheet Given Below.

Click the pdf icon >

​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​




Mount

Attach the mounting bracket and Spirator assembly to the hatch door using the provided hardware.

Fix

Remove the rubber band from the cable end and fix the cable termination to a fixed location near the door lock, ensuring a horizontal pull direction.



Wind

Pre-wind the Spirator to set the proper tension load (recommended: 1–2 wraps).

Install with the hatch door closed. Avoid excessive wraps, as this can reduce the Spirator’s life cycle.

❓ Frequently Asked Questions

  • • What door weight can the Spirator OVS handle?

    The Spirator OVS is rated for doors up to 150 lbs, suitable for standard commercial and residential use.

  • • What mounting options are available?

    It supports regular arm, top jamb, and parallel arm mounting configurations.

  • • Can I adjust both closing and latching speeds?

    Yes, the closer features dual valve adjustment for precise control over both closing and latching speeds.

  • • What finish does the Spirator OVS come in?

    It comes in a corrosion-resistant aluminum finish that complements most door hardware.
