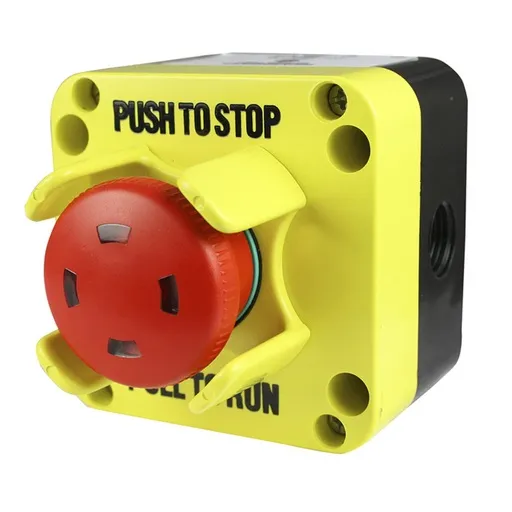

Keep your machinery and automation systems safe with the Giovenzana SLA11NPNC001 Emergency Stop (E-Stop) Control Station. Designed for industrial equipment and control panels, this station features a push-pull mushroom-style red button with a visual indicator, allowing operators to quickly stop equipment in emergencies.
The unit includes one normally closed (NC) and one normally open (NO) contact for reliable fail-safe operation. Its IP65-rated thermoplastic enclosure protects against dust and water, making it suitable for demanding industrial environments. Side-entry cable access and vertical knockouts simplify wiring and panel installation.
Key Features:
Push-pull mushroom button with visual indicator for immediate shutdown
1NO / 1NC contacts for safe operation
IP65, NEMA 4/4X rated enclosure for industrial durability
Side entry and vertical knockouts for easy wiring
Panel cutout: 22 mm
Horizontal mounting, thermoplastic construction
Operating temperature: -13 °F to 158 °F
Complies with IEC/EN 60947-5-1 and UL 508
Applications:
Industrial machinery and control panels
Conveyor and material handling systems
Factory automation and process control
OEM equipment integration
Technical Specifications:
Brand: Giovenzana
Model: SLA11NPNC001
AC rating: 16 A @ 690 V
DC rating: 2 A @ 690 V
Operator type: Push button, maintained push/pull action
Enclosure color: Black/Red/Yellow
Dimensions: 3.42” H × 2.95” W × 2.95” D
Country of origin: Italy
