Plastic/Brass Threaded Stopping Plugs

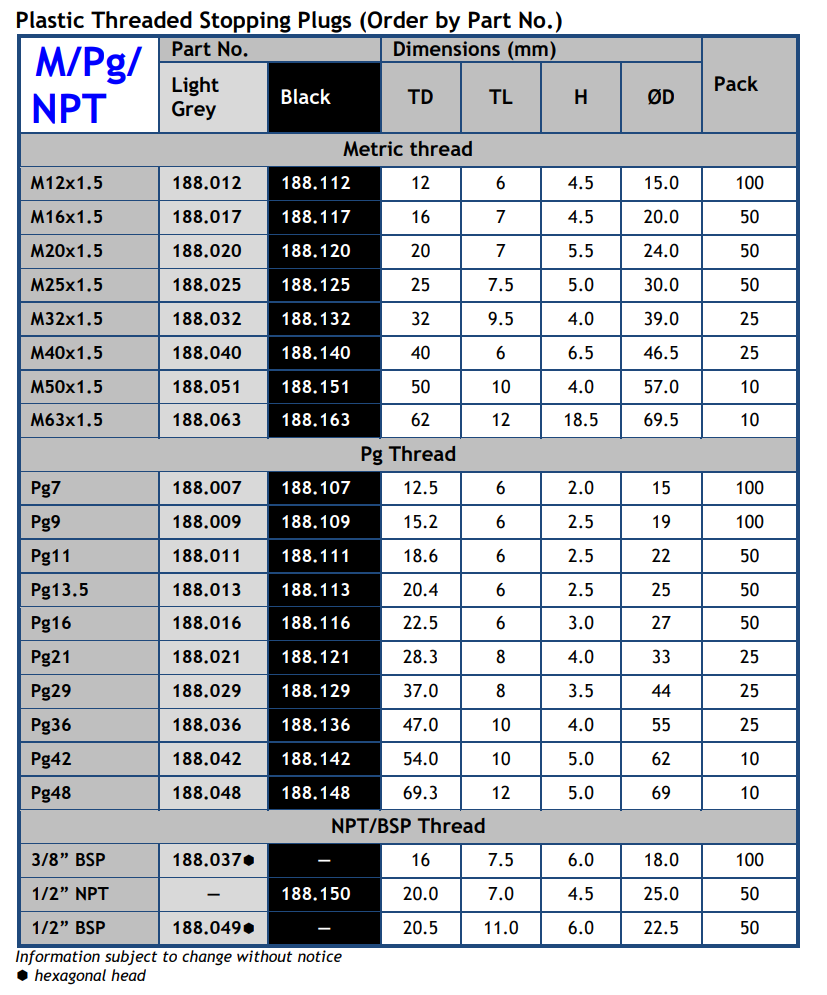

Plastic Threaded Stopping Plugs

Blind stops are used to temporarily or permanently seal a hole in a panel or machine. For non-threaded holes, use the corresponding plastic locknut. Sealing quality can be further improved with an additional sealing washer mounted between the blind stop and the panel.

Features and Specifications

• Operating Temperature: –20 to 100°C (permanent)

• Standard Colors: Black (similar to RAL9005) and Light Grey (similar to RAL7035)

• Material: Polyamide 6

Brass Threaded Stopping Plugs

Features and Specifications

• Head Type: Round heads except where indicated

• Operating Temperature: –60 to 200°C

• Material: Brass, nickel plated

Information subject to change without notice. Refer to technical documentation for exact dimensions and installation guidelines.
