Plastic Locknut With Flange
Flanged plastic locknuts provide a larger contact surface, improving the seal and helping correct any irregularities in the panel cutout. Sealing performance can be further enhanced with an additional sealing washer placed between the gland and the panel.

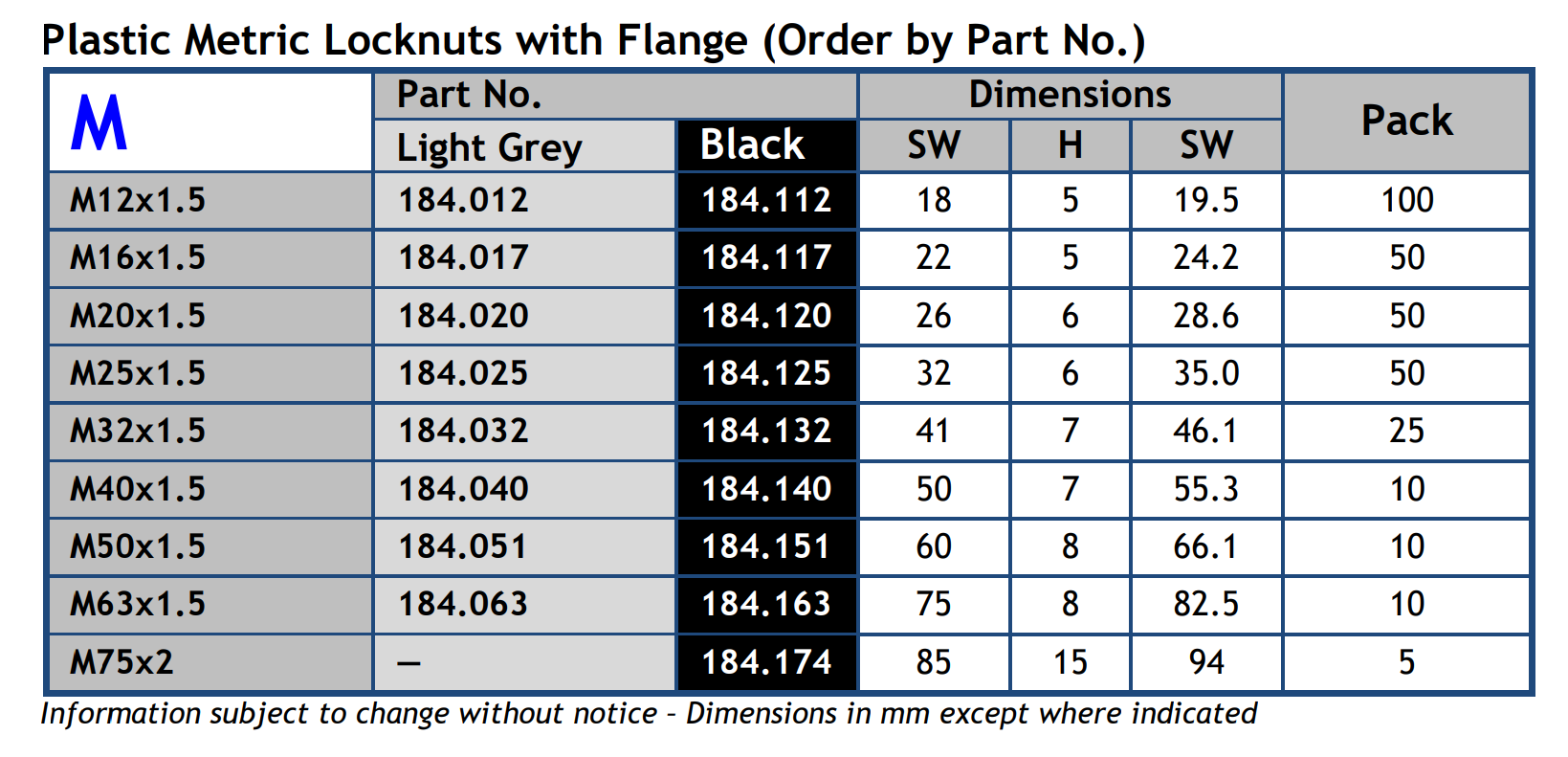

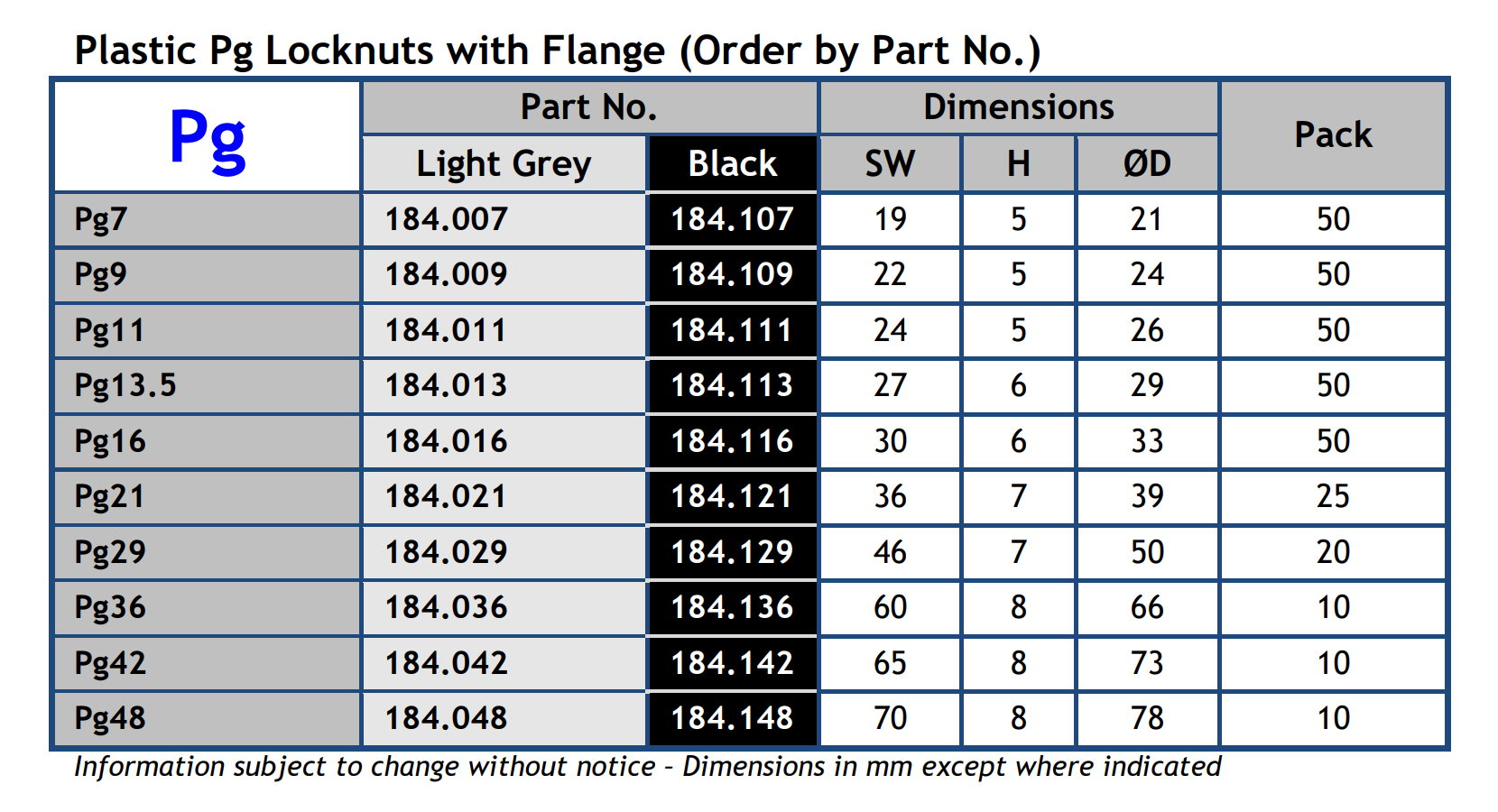

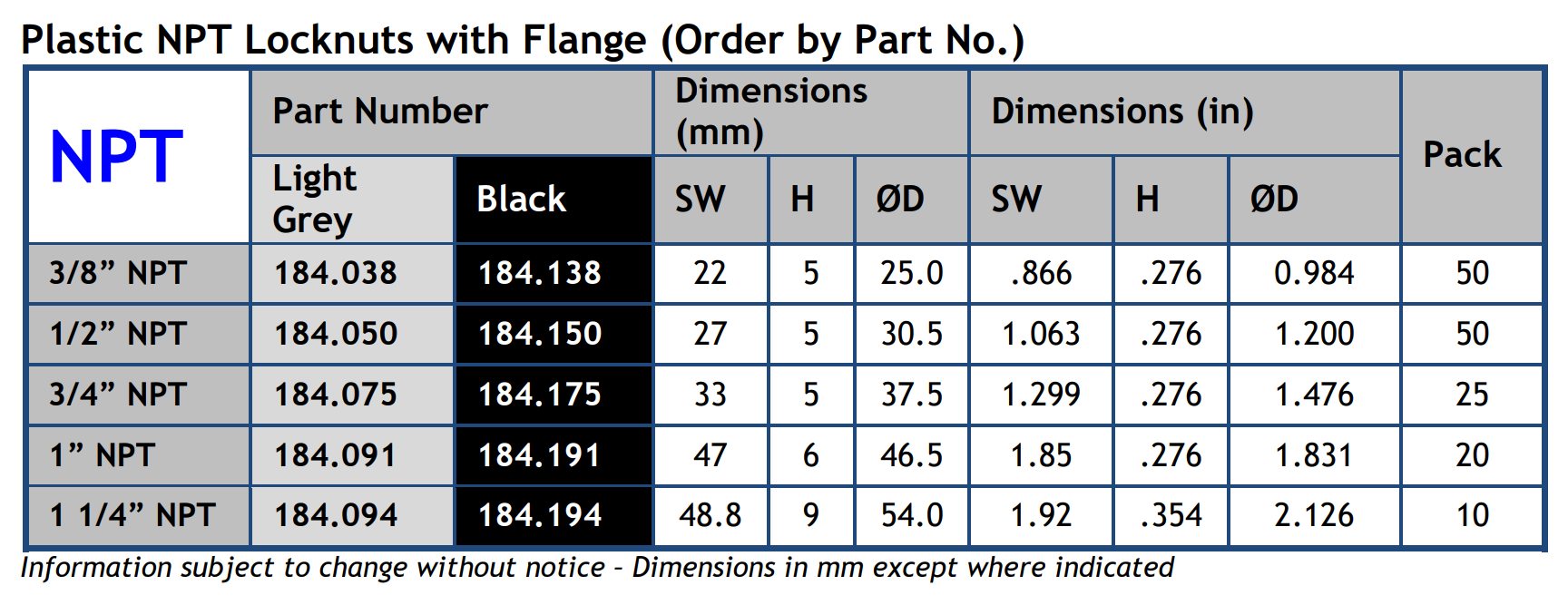

Available in Metric, Pg, and NPT threads. PF (Gas or ISO) threads are available upon request.
Features and Specifications
Operating Temperature: –20 to 100°C (permanent), –30 to 150°C (intermittent)
Standard Colors: Black (RAL9005), Light Grey (RAL7035)
Optional Colors: Dark Grey (RAL7001), Red ◊ (RAL3020), Blue ◊ (RAL5015), White ◊ (RAL9003); ◊ = Metric only, available upon request
Material: Polyamide 6 with 30% fiberglass
Plastic Locknut Without Flange
Non-flanged plastic locknuts are ideal for applications with limited space. Sealing performance can be enhanced with an additional sealing washer mounted between the gland and the panel.

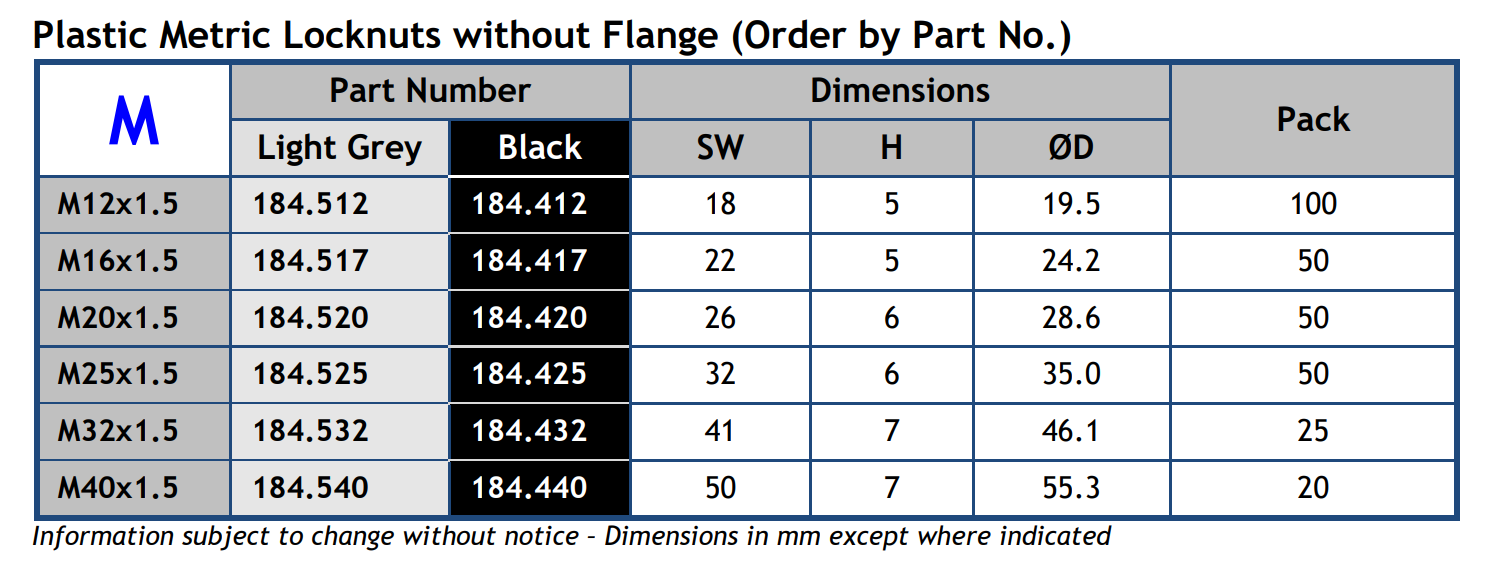

Available in Metric and Pg threads.
Features and Specifications
Operating Temperature: –20 to 80°C (permanent)
Colors: Black (RAL9005), Light Grey (RAL7035), Dark Grey (RAL7001) available upon request
Material: Polyamide 6 with 30% fiberglass
