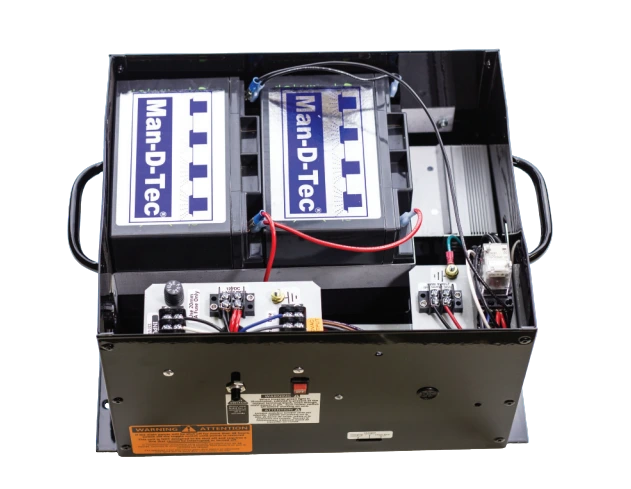

ELS-500 Elevator Emergency Lighting System
The ELS-500® Emergency Lighting System is a rugged, long-life solution designed specifically for elevator applications. Engineered to convert normal cab lighting into reliable emergency lighting during a power failure, the ELS-500 delivers dependable performance while simplifying code compliance.
Built tough and designed to last, the ELS-500 works seamlessly with most existing elevator lighting systems.
Key Features & Benefits
Patent-Pending Design specifically for elevator emergency lighting
UL Listed for elevator control and accessory applications
120 VAC Output inverter supplies emergency power upon normal power loss
Automatic Battery Charger maintains peak battery condition
Simple Wiring with dedicated 120 VAC input and output terminals
Cutoff Circuit Protection prevents deep battery discharge
Test Switch allows quick system verification
Alarm Terminals Included for optional audible alert bells
Meets & Exceeds A17.3 Code requirements (4-hour runtime)
Bell is an add on Option ( See note below)
System Overview
A complete look at compatibility, specifications, and optional accessories.
Lighting Compatibility
The ELS-500 converts existing cab lighting to emergency operation and supports one of the following configurations:
Two (2) Incandescent or Halogen Lamps
Up to 50 watts each (100 watts total)
Two (2) Fluorescent Lamps
Up to 40 watts each (80 watts total)
Two (2) LED Lamps
Up to 40 watts each (80 watts total)
This flexibility allows compliance without redesigning the cab lighting layout.
Technical Specifications
Power Supply (ELS-500)
Input Voltage: 120 VAC
Output Voltage: 120 VAC
Battery
High-capacity, sealed 12V battery
Maintenance-free, long-life design
Exceeds 4-hour emergency lighting runtime requirement
Charger
Automatic charging system maintains optimal battery condition
Enclosure
Material: 16-gauge powder-coated steel
Dimensions:
Length: 13"
Width: 11"
Height: 8"
Optional Alarm Bell
The ELS-500 includes alarm terminals for optional audible signaling:
ESA-1™ – 6 VDC bell
ESA-2™ – 12 VDC bell
Loud gong-style alarm, up to 95 dB(A)
Max current: 250 mA
Please specify alarm option when ordering.
