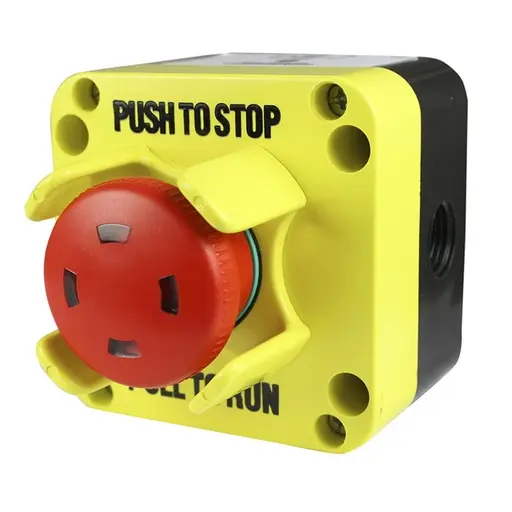

The SLA11NPNC series Emergency stop ( also known as Pit Stop Switch) have been designed to meet the elevator code for Canada and USA. Marking is available either in English or French. The French Version will be available in November 2024.

SLANPNC series Spec sheet.

The Mushroom head has a visual indicator. Red when Pushed to Stop and Green in Normal Operation ( Pull to Run)

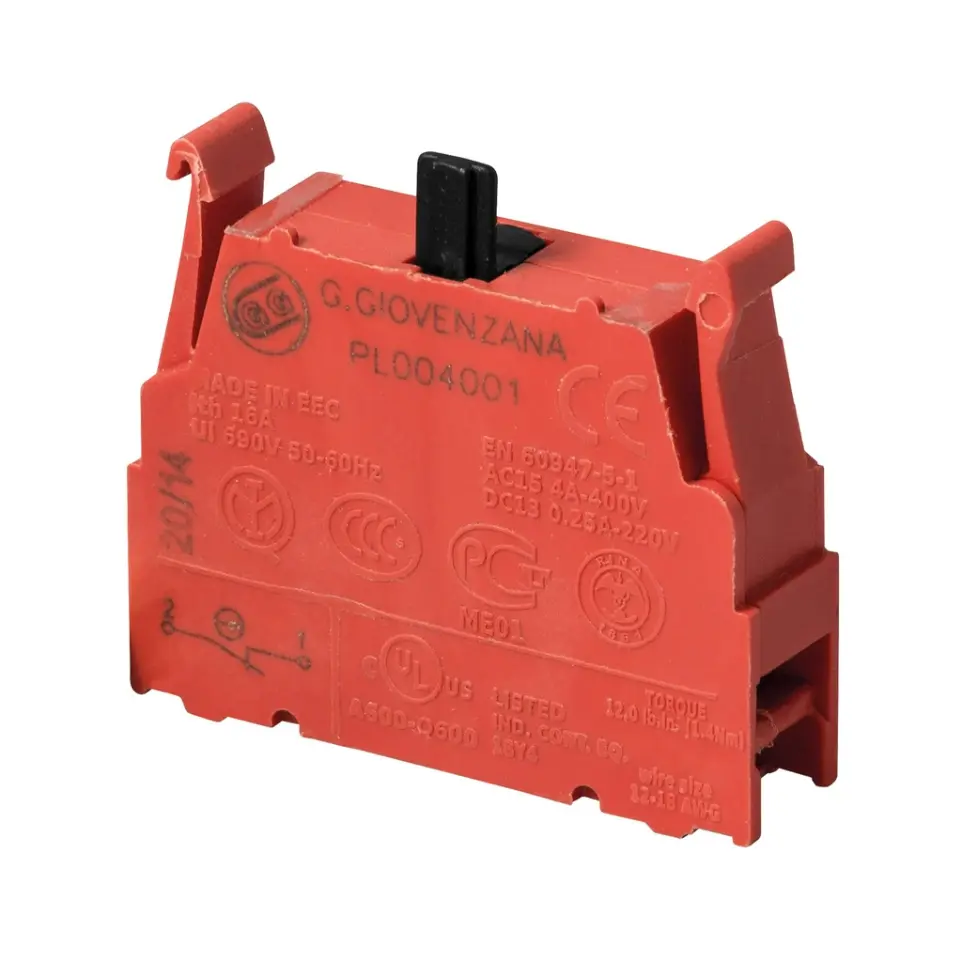

Contact block has the Positively open close Normally close contact.

Cable entry is M16 and M20.

Available Part numbers

• SLA11NPNC002 ( 1NC contact and Side Entry)

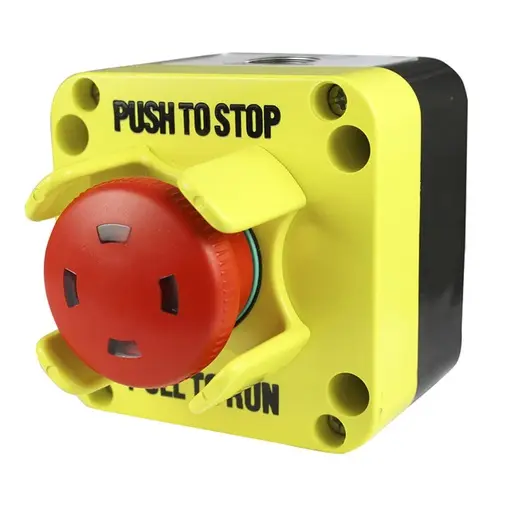

• SLA11NPNCGMS360  ( 1NC contact and vertical cable entry)

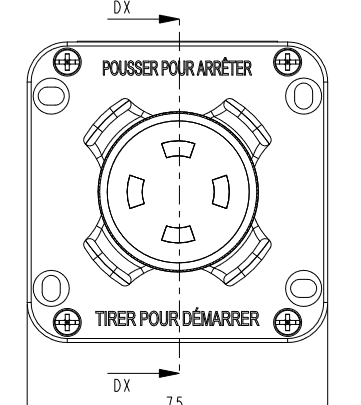

• SLA11NPNCGMS408 ( 1NC contact and Side Entry, French Version)

Other configurations can be supplied based on your requirements with the following options:

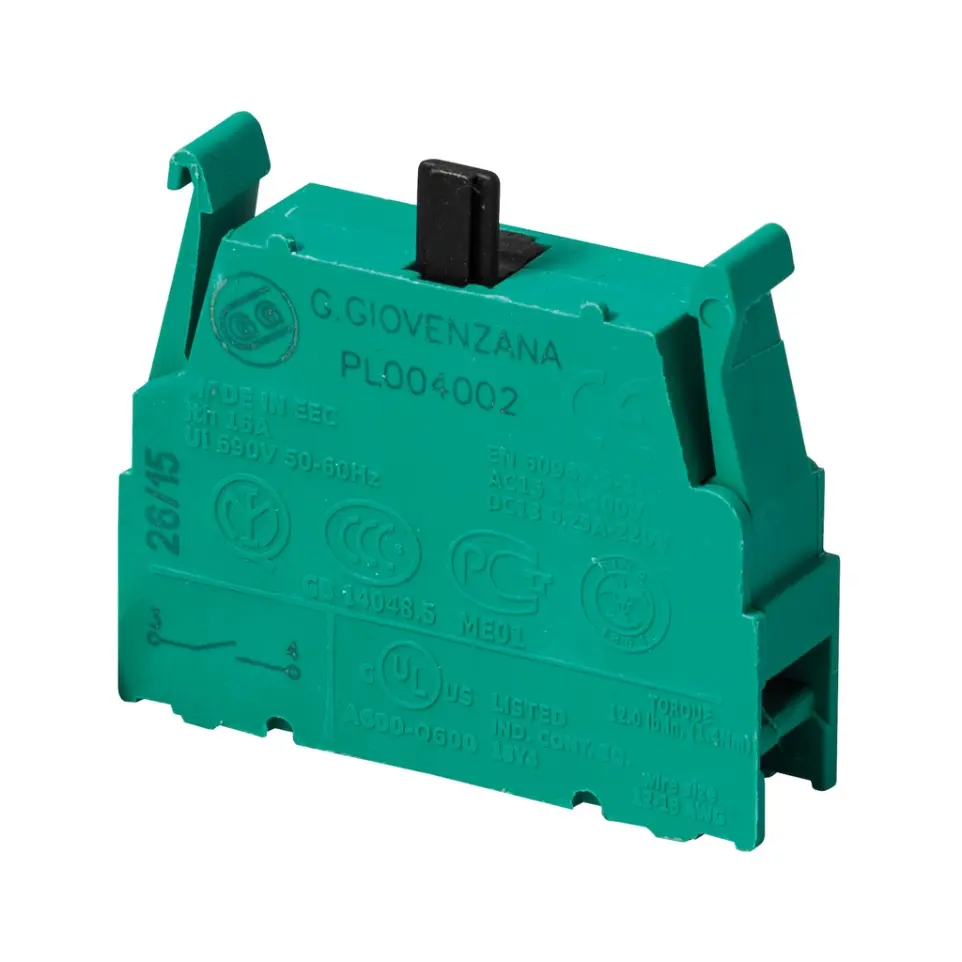

• Normally Open contact block

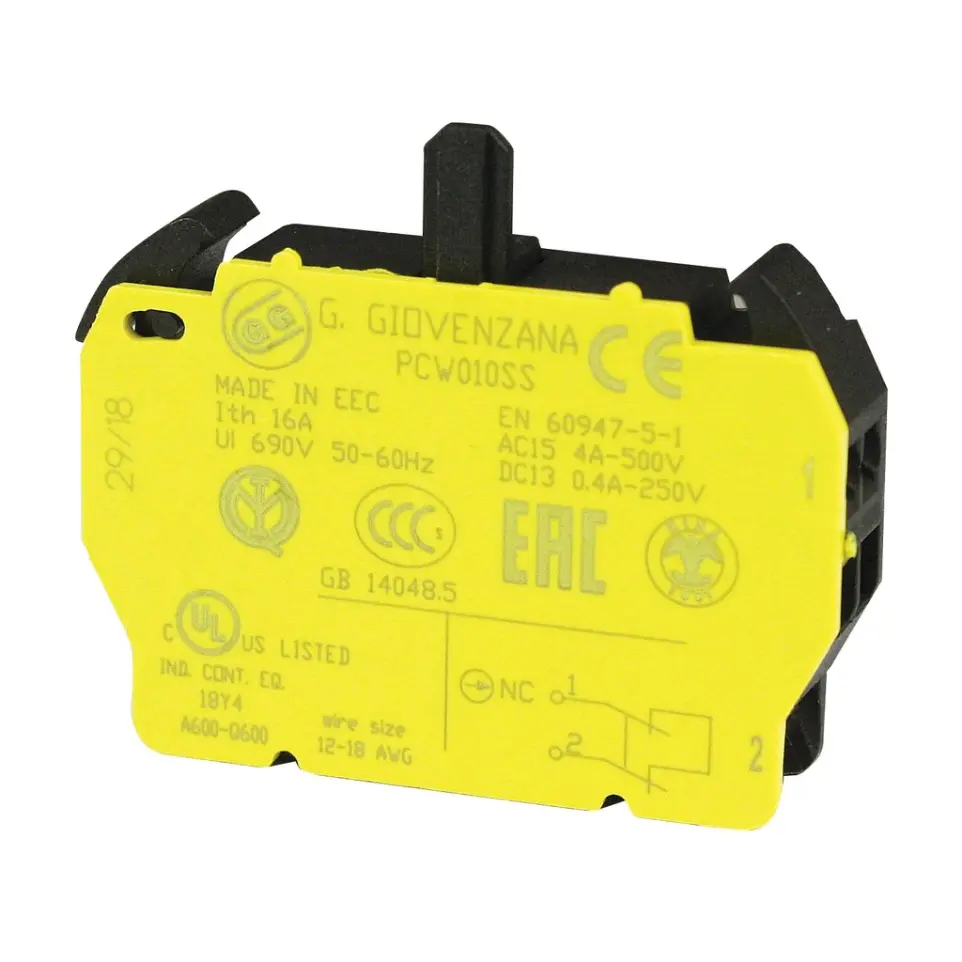

• Self Monitored safety normally close contact block ( 2 days lead time)

• Cable entry on side or from the top

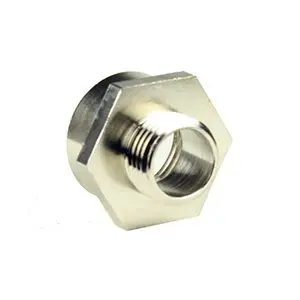

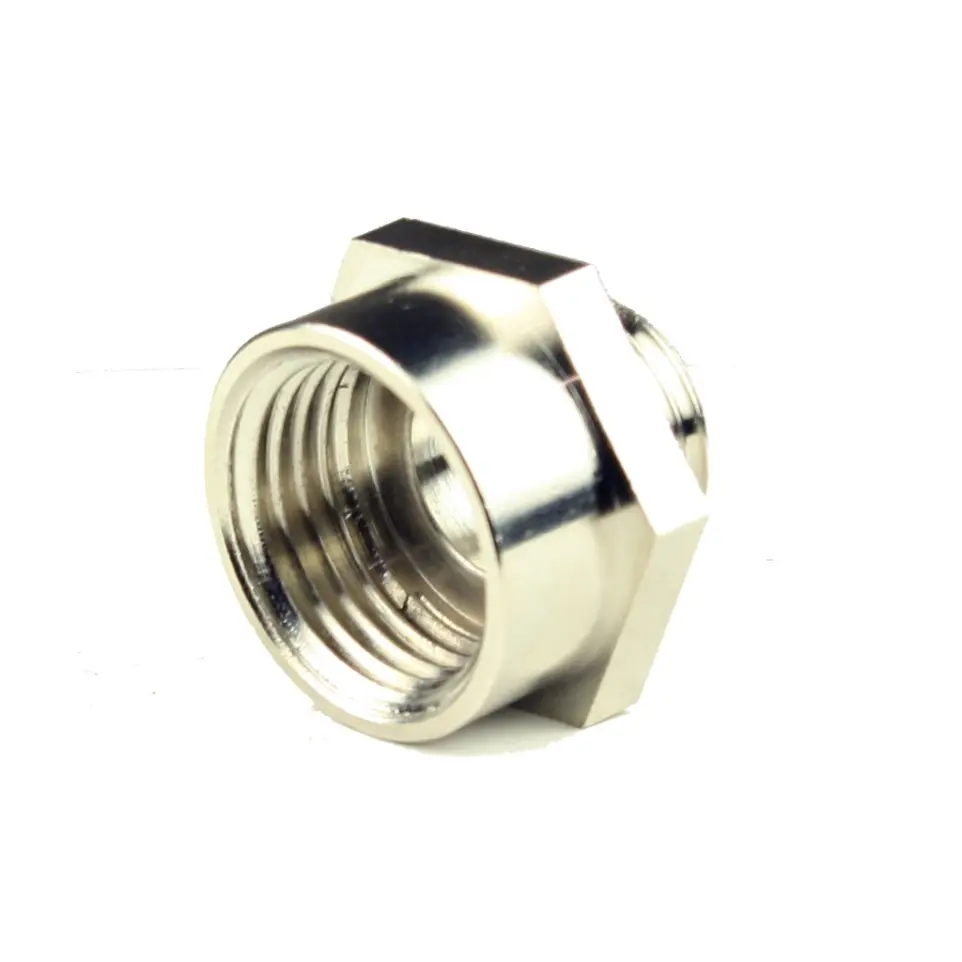

• 1/2" NPT adaptor is available upon request.
