Split Cable Glands

Split cable glands are designed to allow pre-terminated cables and wires to pass through enclosure openings while maintaining sealing performance and strain relief. Each system consists of a two-piece split frame and removable grommet inserts that securely hold the cable once assembled. All split cable gland frames are supplied complete with the matching locknut.

Available Split Cable Gland Frame Models

OSF Series

• Assembly type: Snap-fit

• Available sizes: M16, M20, M25, M32

• Ingress Protection: IP54

• Ratings: NEMA 12, IK10

DESCLICK Series

• Assembly type: Snap-fit

• Available sizes: M20, M25, M32, M50

• Ingress Protection: IP54

• Ratings: NEMA 12, IK10

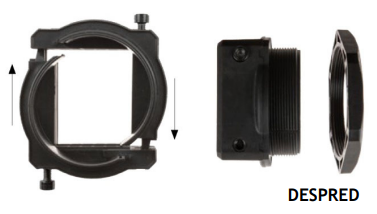

DESPRED Series

• Assembly type: Screw-mounted

• Available sizes: M25, M32, M63

• Ingress Protection: IP66

• Ratings: NEMA 4X, IK10

Features & Specifications

• Designed for routing pre-terminated cables without connector removal

• Two-piece frame allows easy installation and secure cable retention

• Grommet inserts accommodate cables prior to frame assembly

• Supplied with corresponding locknut for panel mounting

Applications

• Control panels with pre-terminated cables

• Electrical enclosures requiring retrofits or upgrades

• Automation and industrial wiring systems

• Installations where cable connectors cannot be removed
